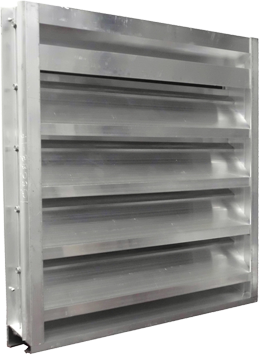

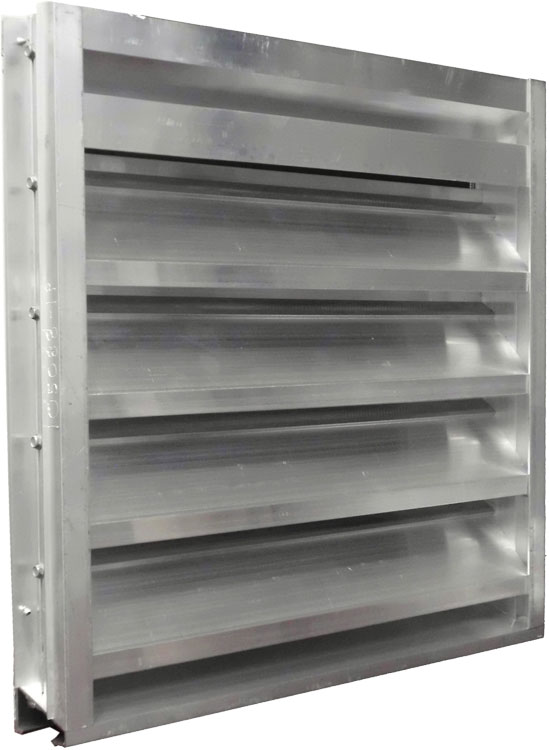

| Model: | TE15 |
| Filter: | TE15 |
| Minimum Size: | 12" x 12" |
| Maximum Size: | 60" x 96" |
| Frame Depth: | 1½" Deep |
| Frame Material: | .063" Thick
Extruded Aluminum 6063-T6/T52 Alloy |
| Blade Material: | .063" Thick
Extruded Aluminum 6063-T6/T52 Alloy |
| Blade Orientation: | Horizontal |
| Blade Type: | Baffle |
| Blade Angle: | 30° |
| Continuous Line: | No |
| Face: | All Surfaces Flush with Jambs, in Head and Sill |
| Screen Options: | Standard Bird Screen: ½" Flattened Aluminum, .051" Thick
Variety of Bird and Insect Screen Options |
| Free Area: | 46% (7.37 ft2 for 48" x 48") |
| Water Penetration: | 400 fpm |
| Pressure Drop: | .10" in. w.g. at 800 fpm and 5896 scfm |
